Ultrasonic Cleaning

Higher efficacy and reduced wastewater production

SIO micro-nanobubble technology dramatically enhances ultrasonic cleaning efficacy without the use of chemical agents

Benefits

Superior Cleaning

Bursting bubbles generate shock waves that break up contaminants on surfaces and carry away sludge for cleaner tool and workpiece surfaces. Excellent forcleaning parts after production.

Kills Bacteria

Nanobubbles produce hydroxyl radicals for chemical-free elimination of odor causing bacteria and prevents biofilm buildup in lines. Creates a safer work environment for employees. Reduces cleaning time.

No Chemicals

Micro-Nanobubble cleaning does not require surfactants. It can reduce the production of harmful emulsions and allow water recycling.

Increased Zeta Potential

Nanobubbles Increased zeta-potential attracts and collects opposite charged sludge particles and better penetrates boundary layers on opposite charged surfaces.

Faster cleaning times

SIO Nanobubble & Ultrasonic Cleaning Test

Nanobubbles are extremely small bubbles (less than 1 ụm in diameter) that tend to remoian in water for a long time. Theis allows them to be evenly distributed throughout the cleaning solution, effectively cleaning fins gaps and complex-shaped parts. Additionally, they enhance the cavitation effect (the shock effect caused by the rapid generation and collapse of bubbles due to the sudden pressure drop in the solution) in ultrasonic cleaning.

Test Method: Ultrasonic cleaning of acrylic plates coated with melted beef tallow.
Equipment: Small benchtop ultrasonic cleaner [Ultrasonic frequency 40 kHz]

TMU Logo

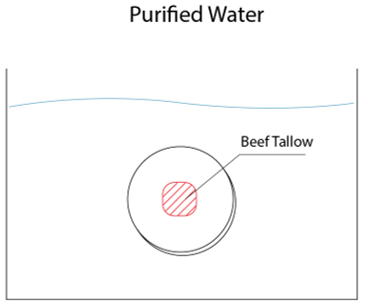

A. Pure Water & ultrasonic Grease on acrylic plate at start and 12.71 sec
A. Pure Water & ultrasonic Grease on acrylic plate at start and 12.71 sec
Results:
A. Pure water & ultrasonic cleaning time approx.:                                      18.40 sec
B. SIO nanobubble water & ultrasonic cleaning time approx.:              12.76 sec   30% improvement
A. Pure Water & ultrasonic Grease on acrylic plate at start and 12.71 sec

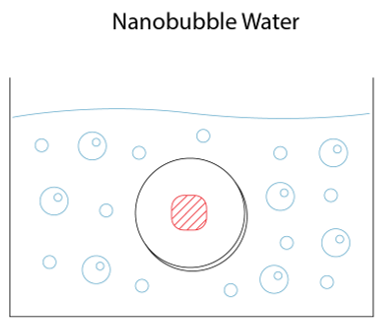

B. SIO nanobubble water & ultrasonic Grease on acrylic plate at start and 12.71 sec

Micro-Nanobubble & Ultrasonic Lens Cleaning Test – Korean Lens Manufacturer

Test: cleaning contamination from lens using MNB (micro nanobubbles) and ultrasonic cleaning Method:

1st Filling tank Ultrasonic OFF
2nd Ultrasonic ON
Lens Before Cleaning
Lens After Cleaning with Micro-nanobubbles and Ultrasonic Cleaning
