Nanobubbles Generator

SIO’s In-line Nanobubble generators offer scalable flow rates and integrates seamlessly into your existing system. The 100% stainless steel construction allows it to be used in harsh environments and it has no moving parts for minimal maintenance.

SIO Patented Internal Structure

Our unique, patented technology combines three fluid mechanic principals to produce a high concentration of stable, extremely small size nanobubbles without the need of any external gasses.

Static Mixing

A method that breaks up gas by using strong viscous shear generated mainly downstream as fluid flows through a complex internal structure

Cavitation

Water flows is a swirling motion along the specially designed blades located on the core element of the unit. As the water collides with the blades, it induces cavitation which leads to the formation of bubbles.

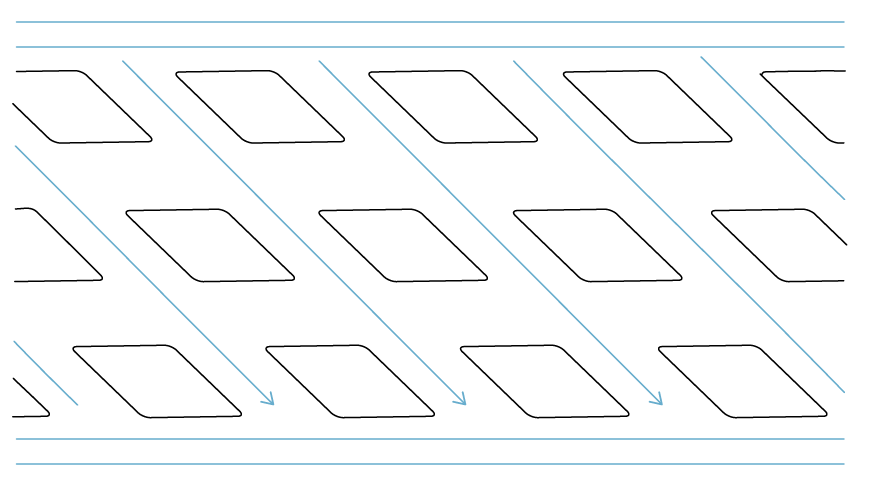

Swirling Flow

Generates nanobubbles by creating a swirling flow inside the device that tears the gas phase apart

SIO Multiple Functions

Mixing

The SIO generator has a superior ability to blend gas and liquids into a stable solution with consistent particle distribution.

Cleaning

The SIO generator produces a large number of nanobubbles with a strong negative surface charge which allows them to attract and remove dirt. By using nanobubbles you can reduce the amount of detergents and solvents used for cleaning.

Permeability

The patented design of the SIO processor reduces surface tension of fluids which improves its permeability and makes it possible to apply it in various fields.

Cooling

By improving the permeability of the fluid (E.g. CNC machining) the coolant has greater contact between the workpiece and the tool which allows the coolant to reach and cool the heat source.
